Spread Uniformly? Operate Fluently? High Reliability

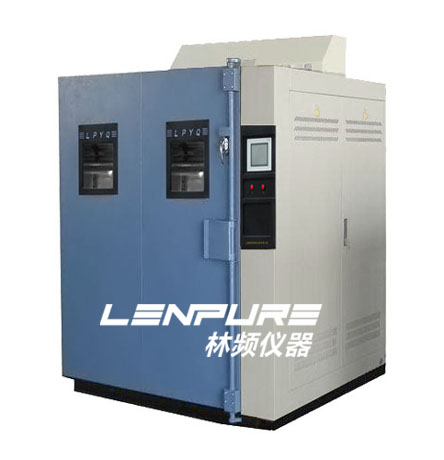

Photovoltaic humidity freezing test chamber is suitable for photovoltaic modules (Solar panel), and make thermal cycle、humidity freezing cycle、High temperature high humidity and double 85 test, To confirm that if the unit can stand the negative temperature effect followed by high temperature and humidity, Meanwhile, the fatigue and thermal failure that brought by temperature repeatedly changing. In addition, also to confirm the thermal stress that the photovoltaic modules explored under the high humidity and the ability that can resist the moisture permeating for a long time. It is the essential testing equipment in the photovoltaic modules industry.

Thermal Cycling ? Humidity Freezing? Humidity heating

IEC 61646 Thin film ground photovoltaic modules thermal cyclic test、

Humidity-freezing test、humidity-heat test.

a、 Thermal cycle test(Purpose: To confirm about the ability that the unit can stand the thermal mismatch、fatigue and different stress under the temperature changing repeatedly)

b、 Humidity-freezing test(Purpose: To confirm about the ability that the unit can stand under the high temperature、high humidity and also followed by the effect of the temperature under 0C).

c、 Humidity-heating test(Purpose: To confirm about the ability that the unit can resist the moisture permeating for a long time)．

Intelligent touch screen? Automatic Calculation? Remote Control

The temperature humidity controller adopt real color 7.0” intelligent touch screen controller. The panel is very simple to operate, and the program is easy to edit, don’t need dial by the button and directly touch by the touch screen.

Safety、Protection equipment is equipped

Refrigerating system: The over-temperature of compressor

Humidification System: The dry burn of heating pipe、The abnormality of water supply、The abnormality of drainage

Test Chamber: The protection of over temperature、under-phase/ anti-phase

Leakage Protection: Distribution control panel open the power-off protection

ISO9001 Certificated

IEC61215、IEC 61646、GB/T19394－2003、 GB/T9535－1998、GB/T6492－1986 test standard

Specs&Technical Parameters

Performance Index	Temperature range	-60℃～+100℃
	Temperature Volatility	±0.5℃
	Temperature deviation	±2℃
	Temperature increase/down rate	According to IEC 61646 test standard
	Humidity Test	85℃，85% R.H
	Humidity Range	20%～95% R.H
	Sample Bearing	Solar energy thin-film unit: 6 pcs 180kg、alloy aluminium material holder: 280kg
	Testing Method	a.Thermal cycle test b.Humidity-freezing test c.Humidity-heating test
	Time Function	0.1～999.9（H、M、S）adjustable
Control System	Controller	real color 7.0” intelligent touch screen controller
	Precision Range	Setting/Dispaly precision: 0.1℃、Humidity:+0.1%RH
	The valued slope setting	Temperature: 0～100℃/min Humidity: 0～9.9％RH/min
	Lighting	High light low pressure safety energy saving lamp
	Heating System	Special Stainless steel naked wire heating appliance ( Can work under the high temperature humidiy for a long time
	Refrigeration System	Original Tecumseh brand fully sealed single/double stageair cooled refrigeration compressor
	Humidification System	Stainless steel special electric humidifier
Using Material	The material of exterior box	High Quality carbon steel board. phosphating static plastic spraying/ SUS304 Stainless steel matte line craze
	The material of interior box	SUS304 Stainless plate high quality/mirror surface tabular rasa
	The material of insulation	High density hardness Polyurethane foaming(100mm)
	Heat insulation of the doorframe	High Strength Silicon Article forced tight: 1pc
Safety Protection		Leakage、Short circuit、Overheat、Motor overheating、Overpressure of compressor 、 Overload、Over-current protection
Power Supply		AC380V±10％ 50±0.5Hz 3 phase 5 l
Environmental for application		5℃～＋30℃ ≤85％R.H
注： 1、Above date is tested under the enviromental temperature of 25C(no load) 2、Test foundation: measuring the site of sensor far from the interior chamber for 1/10 distance
