Step into nonstandard laboratory and help boost China Aerospace.

Through many selections, Linpin has become outstanding from the cutthroat competitions among lots of famous manufacturers in China and in the world and won the bidding. A group of low-temperature storage test chambers are ordered to be used for the storage of hydrogen-nickel batteries on shooting ranges and for activation tests within the activation time.

Simulate natural working condition to safeguard scientific research cause.

Our company has already cooperated with many branch institutions, directly affiliated units, co-construction units of Chinese Academy of Sciences and holding companies in which Chinese Academy of Sciences directly has invested, for nearly one hundred times. Shanghai Linpin Instruments Co., Ltd has already become the first choice of brand for environment test equipments of Chinese Academy of Sciences.

Environment test chamber provides facilities to educational units.

Linpin has years of experiences in cooperating with old schools with the history of a hundred years. Both parties have reaped in not only interests but also friendship and moving happiness. Linpin hereby wishes all teachers who are tireless in teaching students “foster students under the heaven and train talents throughout China”!

Elegant Appearance ? Testing Accurately? High Reliability

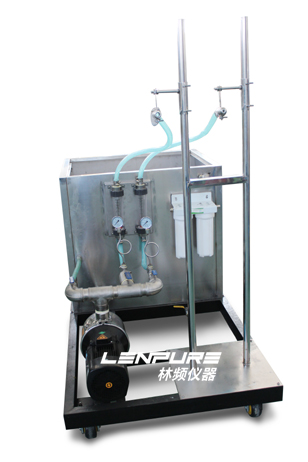

Immersion test device is mainly for the performance test of the product’s storage、transportation and using under the immersion environment. It is mainly for the electrical and electronic product, lighting, cabinet, electrical components, automobile, motorcycle and its component parts etc product. Under the simulative rain climatic condition, make the test for the products’ physics and relative performance. The test result is for judging the performance of the test to check that it can reach the requirement, and convenient for the product’s design、improvement、calibration and delivery inspection.

High Temperature ? Corrosion-resistant ? Good Gloss

The material adopts stainless steel, it has wonderful corrosion-resistant and glossiness. The antioxidant effect is good under the high temperature.

LED high definition touch screen controller ? Man-computer interaction ? Remote operation

The control panel imported from Taiwan. Extra-large screen picture, and it is very easy to operate and program. The appearance of the chamber is gorgeous, the screen can be touched directly.

Adopt Intensive Spit-out Nozzle

The test chamber adopt intensive spit-out nozzle, it can make operation test under the simulative water spraying climate condition. In the biggest watering situation, there is no shock and noise.

ISO9001 Certificated

Referred standard: GB10485-89 GB4208-93 GB/T4942 and so on

Specification&Technical Parameter：

Model		LRHS-04-IPX3/4	LRHS-06-IPX3/4	LRHS-08-IPX3/4	LRHS-10-IPX3/4	LRHS-12-IPX3/4
Oscillating pipe's radius (m)		0.4	0.6	0.8	1.0	1.2
Performance Index	Amplitude of swing angle of oscillating pipe	±45°、±60°、±90°、±180°（theoretical value）
	Hole spacing	50mm
	Blowhole diameter of oscillating pipe	φ0.4mm
	Water pressure of rain	80～100kpa
	Dimension of test bench	φ600mm Auxiliary Test Bench φ400mm
	Rotary speed of test bench	1r/min（Step less speed regulation（Optional））
Operating Control System	Controller	Imported weinview color touch screen (Taiwan) and Siemens PLC control module (German)
	Water Press Control	Flowmeter
	Water Supply System	Water Storage Tank、booster pump
Standard Equipment		Nozzles Nozzle，Cleaner
Safety Protection		leakage、short out、The overheat of the motor
This technical information will be not noticed if any changing

GB 4208-93 外殼防護等級（IP代碼）	本站下載
GB 5170.20-90 電工電子產品環境試驗設備基本參數檢定方法水試驗設備	本站下載
GB 5170.20-90 防水試驗設備檢定標準	本站下載
GBT 10485-2007 道路車輛外部照明和光信號裝置環境耐久性	本站下載
GJB 150.8-86 軍用設備環境實驗方法淋雨試驗	本站下載
